Update:
I have finished counting and bagging everyones order. Final step is to place it in envelopes/boxes, print the labels and mail. I hope to do that over the next two days.
I was a bit delayed in getting this out due to the fact I just got my show up and running this past Saturday.
Anyhow, I also thought it would be a good idea to make sure all of this went together okay, so I soldered up one of my Group Buy units and made the cable.
The board soldered up very easy and can be built in about 5 minutes.

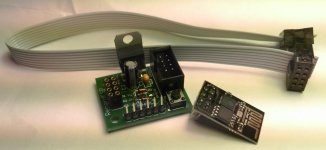

Picture below. I will tell you that you have to be very careful putting the cable together correctly. Be sure to look at Bill's web blog for the detailed instructions.
Also, I would build ONE CABLE and test it before you build them all. The parts for the cable are very expensive and I won't have extras except for the cable itself. They are also made to be put together and not to be taken apart.
In fact, I think it's nearly impossible to take apart without breaking the plastic pieces.
Other notes:
I sourced the ESP module from a USA Seller, not China directly. I'm hoping this will lead to a better supported product.
As with all my group buys, there are extra pieces in everyones order. When ordering in bulk, I throw the extras in with the orders. This also includes the extra PCBs that my supplier routinely includes.
So, please don't ask me if I know how to count. :lol:
Once all the packages have shipped I will post again.
Click on the picture to enlarge:
